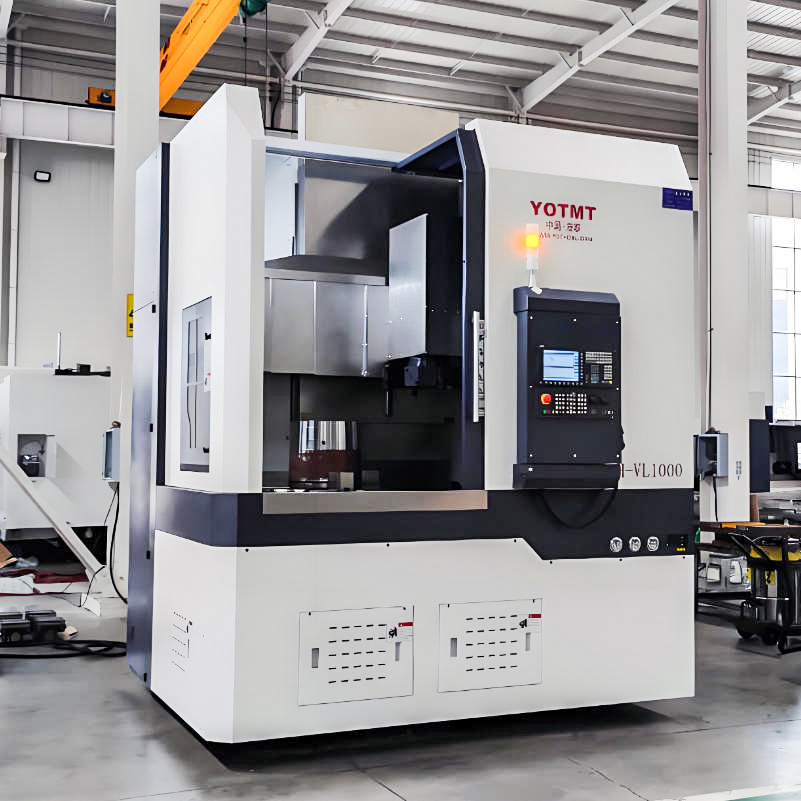

Vertical CNC Lathe Machine with Turrets for Disc Parts Turning

Share to:

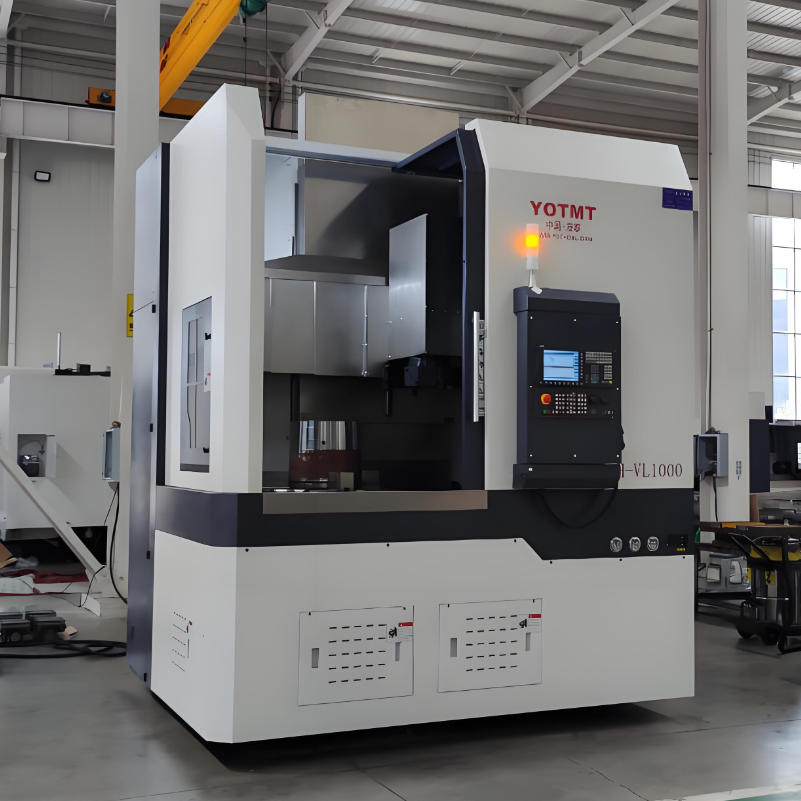

Vertical CNC Lathe Machine with Turrets for Disc Parts Turning

The lathe adopts a 3-line rail design and an ultra-stable structural body.
The tool has large cutting feed rate and high-efficiency processing.

SKU:
Availability:

Quantity:



Inquire PDF Export

Brand:
YOTMT

Product Description

| APPLICATION VIDEO

MODEL	SWING DIAMETER	TURNING DIAMETER	WORKPIECE LENGTH
H-VL700	770	700	650/750
H-VL850	920	850	650/1000
H-VL1000	1100	1000	800/1200

| ARGUMENT

ITEM	UNIT	H-VL700	H-VL850	H-VL1000
SPINDLE TYPE	一	Precision type
MAX. SWING DIAMETER	MM	770	920	1100
MAX. TURNING DIAMETER	MM	700	850	1000
MAX. WORKPIECE LENGTH	MM	650/750	650/1000	800/1200
SPINDLE SPEED	RPM	50-1500	50-1500	30-800
X/Z AXIS STROKE	MM	580/650-750	580/650-1000	700/800-1200
X/Z AXIS FAST MOVE SPEED	MM	20000/24000	16000/20000	12000/16000
REPEAT POSITIONING ACCURACY	MM	0.005/0.008	0.005/0.008	0.006/0.009
POSITIONING ACCURACY	MM	0.008/0.01
CHUCK SIZE	INCH	18/21/24	21/24/28	24/28/32
CHUCK TYPE	-	hydraulic
TOOLING TYPE	一	Row type/turret	Row type/turret	turret
STATION TOOLING	PIECE	2/4/6/8	2/4/6/8	2004/5/6
SPINDLE POWER	KW	18.5	22	30
ACCURACY PROCESS	一	IT5-IT6	IT5-IT6	IT6-IT7

| DETAIL PRESENTATION

vertical lathe

THICK AND WIDENED LINEAR RAIL SCREW

Heavy-duty host structure design, precision bearings, and ultra-high rigidity ensure stable precision.

FULLY STAINLESS STEEL INTERIOR PROTECTION

Large torque, large chip margin of about 7mm on average according to different materials, high-efficiency processing while ensuring accuracy and stability.

cnc machine

cnc lathe

CHAIN PLATE CHIP CONVEYOR

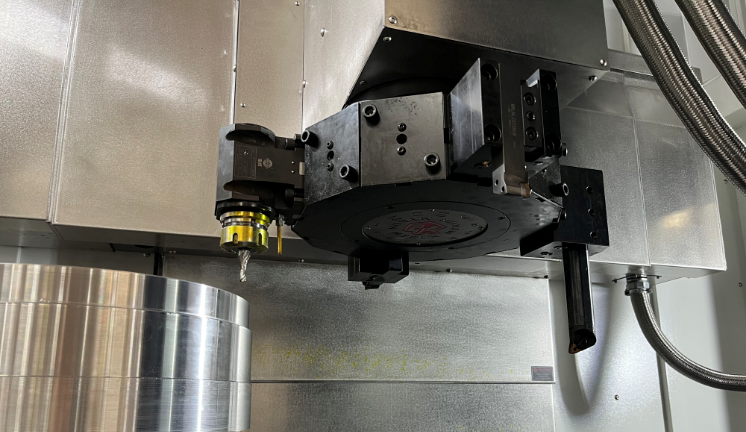

Linear guide rails, servo tool holders, servo turrets, and special tools for vertical lathes are optional.

CNC SYSTEM OPTIONAL

Tight stainless steel internal protection, 45-degree tilted base chip removal design, and high-pressure chip punching ensure a comfortable use experience.

VTL machine
