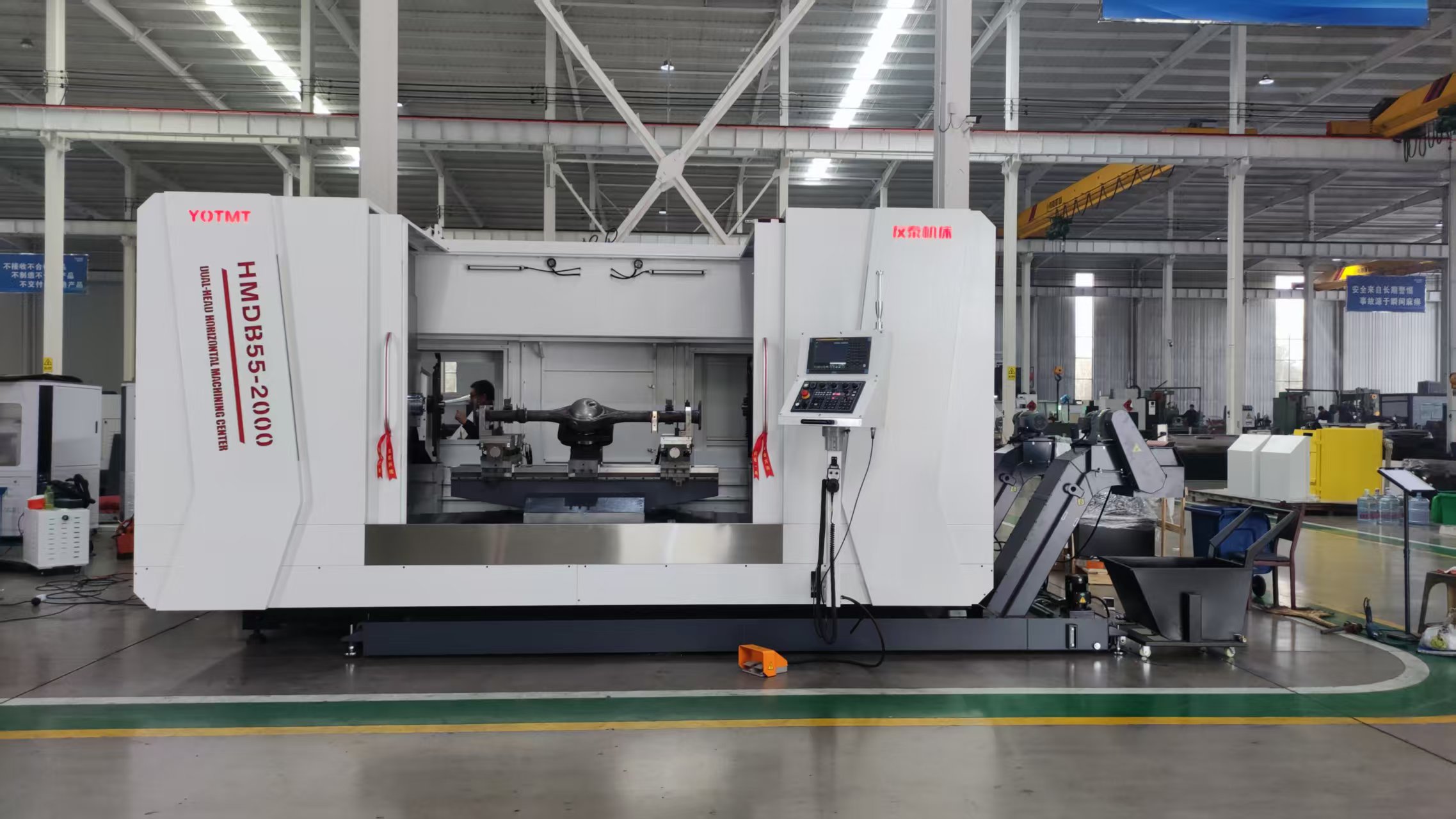

Double-ended spindle design, horizontal spindle box layout, three moving axes on each side, and simultaneous milling and drilling and tapping of two sections of the workpiece.
SPINDLE DESIGN

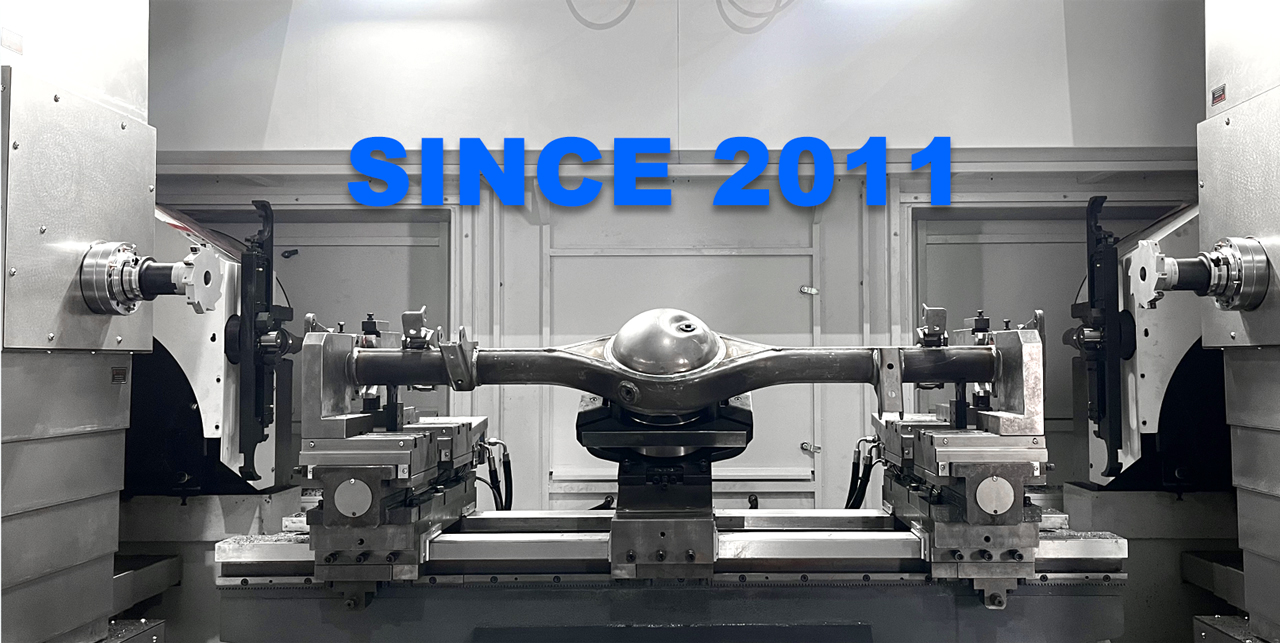

The two end faces are processed simultaneously, and each side is equipped with an automatic tool change magazine to meet the drilling and tapping processing of different positions and specifications.
USE DESIGN

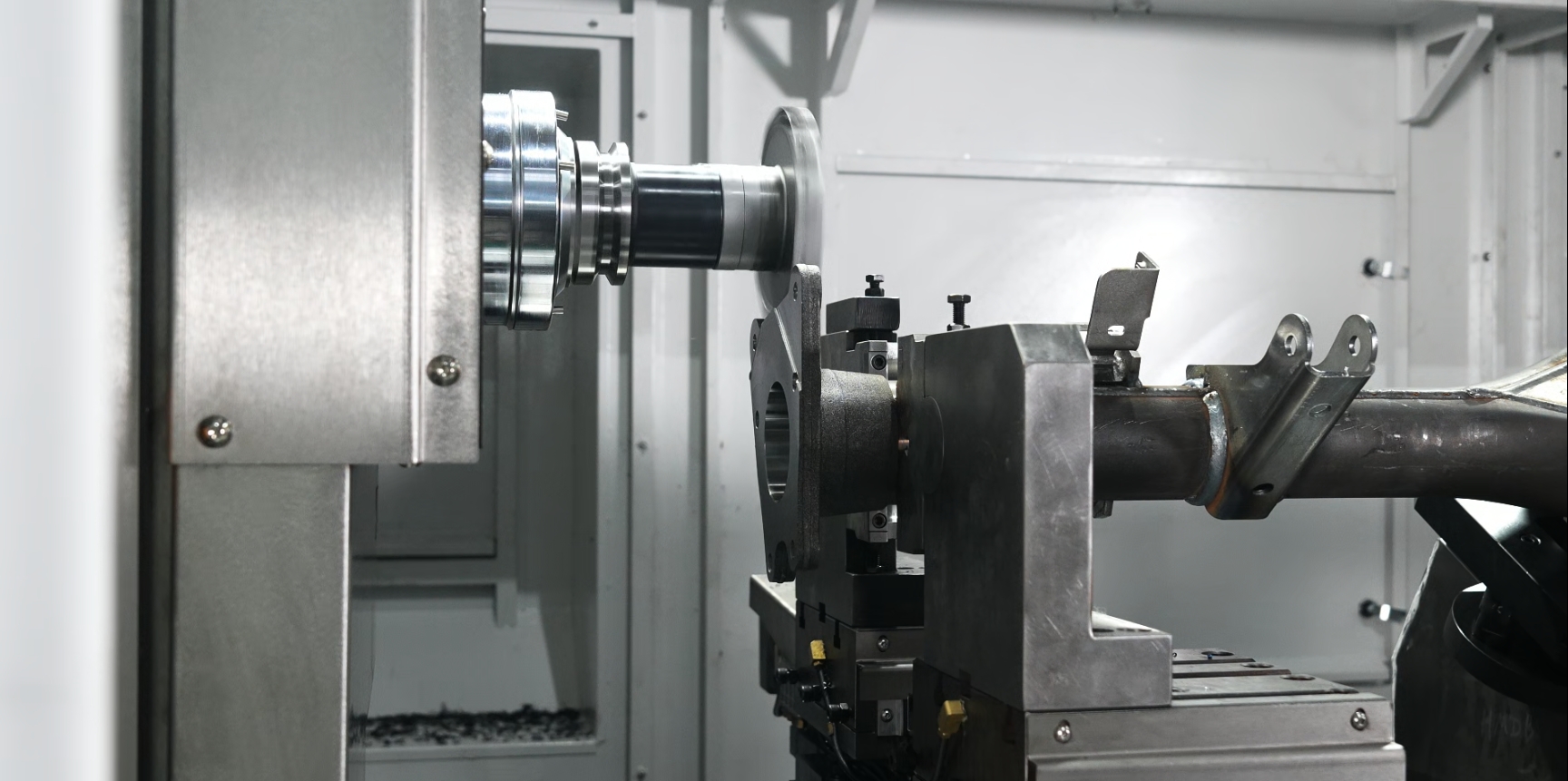

Dual-channel CNC system, adjustable self-centering hydraulic clamp, high-pressure coolant chip flushing and cooling, foot switch and manual trimmer,
HARDWARE DESIGN
Integrated casting base, integrated spindle box, enclosed internal and external double-layer protection, and domestic first-class quality accessories are selected.
| PRODUCT SHOOTING
Active positioning system, automatic interface, customized according to processing diameter/length, multi-brand control system optional, double chip removal structure, double channels at both ends are controlled separately,
| VIDEO SCAN ON ALIBABA STORE
Inclined centering machine CNC
Double head turret
CNC lathe
Twins-verticall
lathe CNC
Vmc machining
center
Vertical lathe
CNC
Horizontal centering
machine CNC
| APPLICATION VIDEO
| ARGUMENT
Project
Unit
Parameter
usage
workpiece diameter
mm
100~400
workpiece length
mm
300~1000/2000/3000/4000
process details
drilling,tapping,milling,boring
custom details
diameter,length of parts
details
axis each side
3
tool magazine
P
16~32
cnc controller
double channel
KND.GSK.FANUC.SIEMENS.....OPTIONAL
OVERVIEW
Overall machine size (approx.
mm
7400×2100×2600
Overall machine weight (approx.)
kg
12000 ~180000
Total power (approx.)
kw
60
| DETAIL PRESENTATION
STRUCTURAL DESIGN
Double-ended spindle design, horizontal spindle box layout, three moving axes on each side, and simultaneous milling and drilling and tapping of two sections of the workpiece.
SPINDLE DESIGN
The two end faces are processed simultaneously, and each side is equipped with an automatic tool change magazine to meet the drilling and tapping processing of different positions and specifications.
USE DESIGN
Dual-channel CNC system, adjustable self-centering hydraulic clamp, high-pressure coolant chip flushing and cooling, foot switch and manual trimmer,
HARDWARE DESIGN
Integrated casting base, integrated spindle box, enclosed internal and external double-layer protection, and domestic first-class quality accessories are selected.
| PRODUCT SHOOTING
Active positioning system, automatic interface, customized according to processing diameter/length, multi-brand control system optional, double chip removal structure, double channels at both ends are controlled separately,
