Design concept:

While meeting the requirements of efficient milling with large allowance at the end, the center hole of shaft parts and other holes on the same line as the center hole on the X-axis are processed.

Compared with the double-end spindle horizontal machining center, it requires less investment and is more suitable for users who meet this processing condition.

At the same time, the Y-axis can be extended at both ends, and the full range of equipment supports deep customization, striving to fully meet user needs.

design

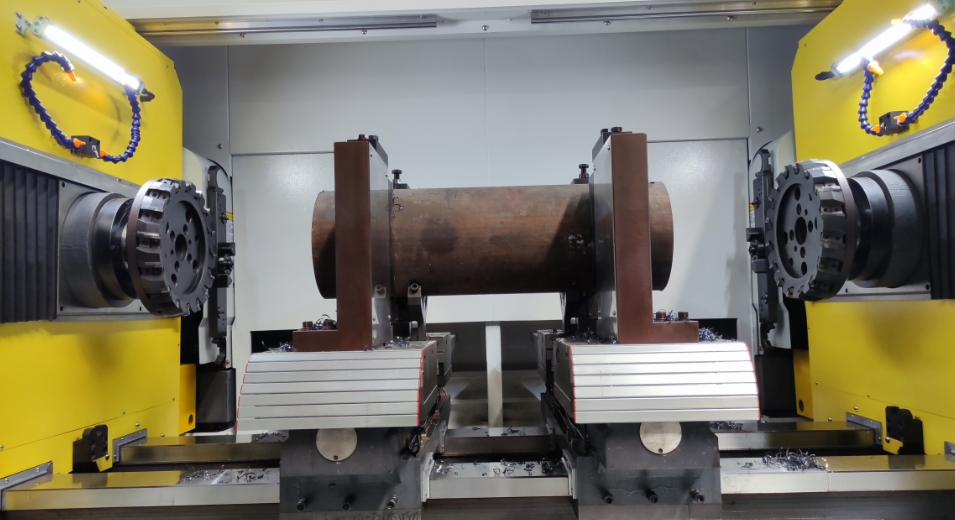

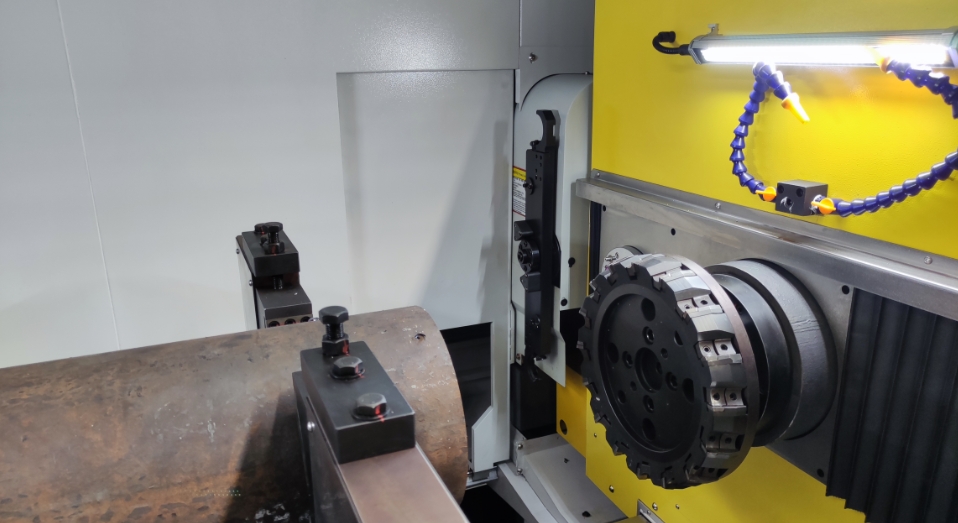

Double-ended spindle*2, milling+drilling

Double-ended tool magazine, 16/24 stations

Double-ended Z/X axis

Equipment size - designed according to the diameter and length range of the parts

Z-axis high rigidity hard rail

Double channel cnc controller

BT40/BT50 model spindle

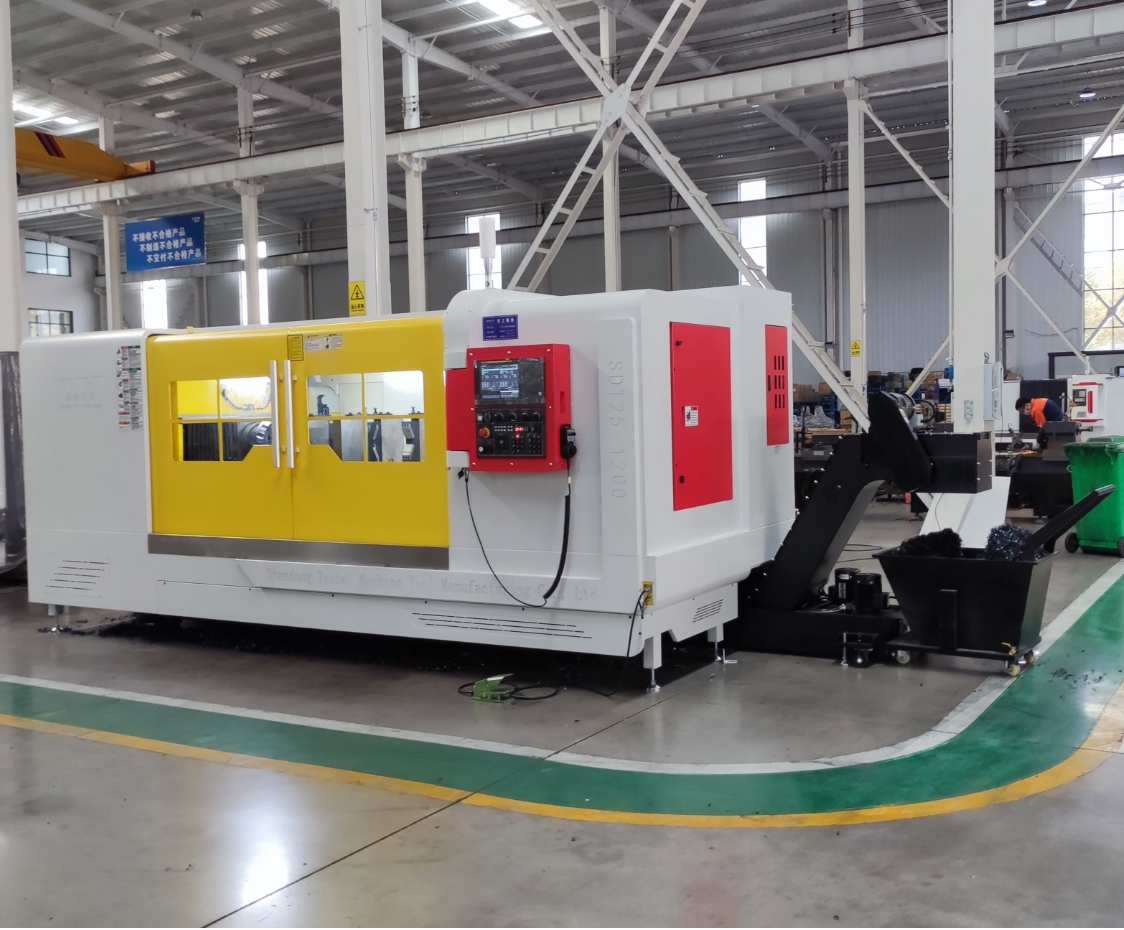

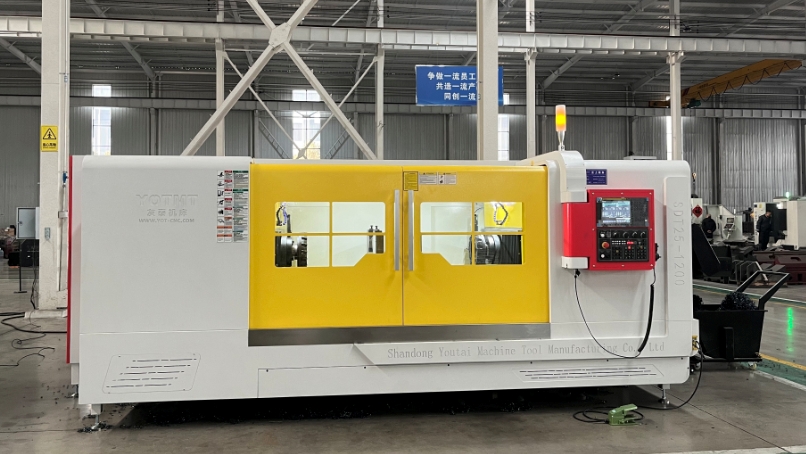

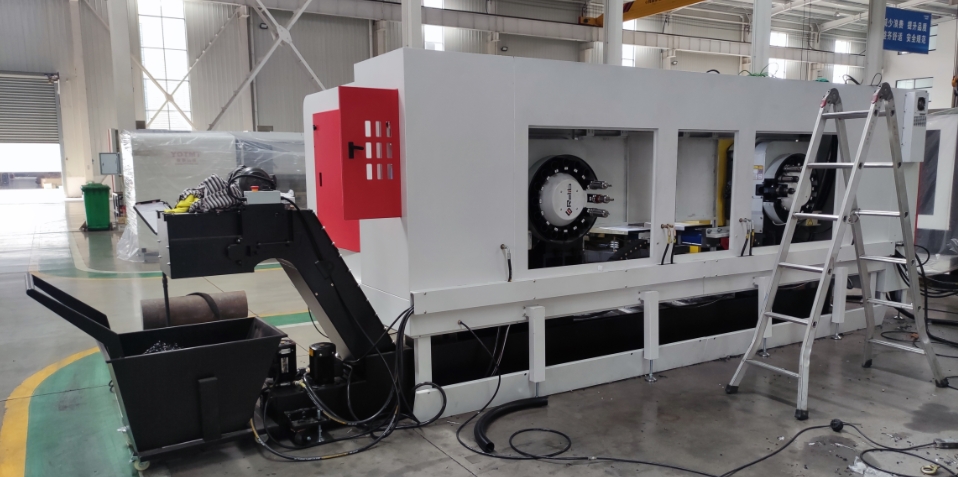

Equipment display
